Product Overview
The GH100/200 is an X-band miniature radar sensor specifically designed for IoT smart devices, operating at 10.525GHz with a low-power planar microstrip antenna design. This module is based on the Doppler shift principle, achieving high-precision moving target detection by transmitting microwave signals and analyzing frequency changes in reflected signals.
The product features the ability to penetrate non-metallic materials, supporting concealed installation for IoT applications such as smart homes, intelligent security, and energy-saving control. Compared to traditional PIR sensors, the GH100/200 offers significant advantages like all-weather operation, resistance to environmental interference, and low false alarm rates, effectively expanding detection boundaries and enhancing the sensing reliability of smart devices.
Key Features
· Ultra-low power consumption: 200mW (40mA@5V), supports battery operation
· Fast response: 6μs setup time, enabling real-time interaction without delay
· Dual modes: Continuous wave/pulse mode, flexibly adaptable to various scenarios
· Wide temperature range: -15~55℃, unaffected by light or dust

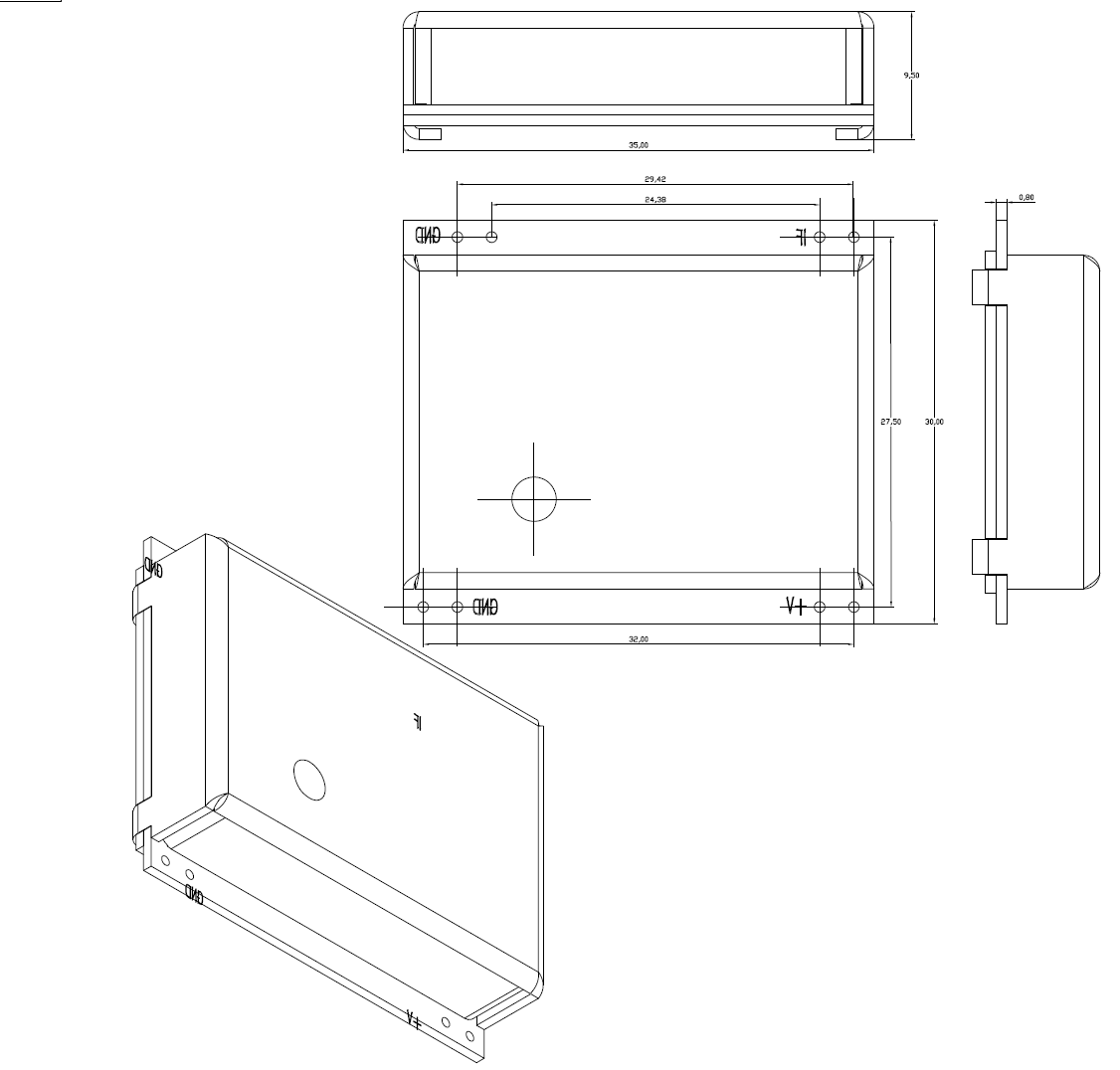

· Compact design: *** small 35×30×9.5mm, easy to integrate
· Compliance certifications: Meets FCC/CE standards, low harmonic radiation
