Product Overview
The GH7184 series is an ultra-low power human body infrared sensing module with a static power consumption of only 15μA. It supports a wide voltage range of 3.7V-20V and adjustable sensing distances of 3/7 meters, outputting a 3V TTL level, making it suitable for battery-powered smart home and IoT devices.
Product Features
Ultra-low power consumption: Static current ≤30μA, 1000mAh battery can last up to 3 years.
Wide voltage: 3.7V-20V, compatible with lithium battery, USB 5V, and 12V
Adjustable distance: Dual-range switching between 3m/7m, suitable for spaces of various sizes
Dual mode: Hardware-switchable between repeatable/non-repeatable triggering
Plug and play: 3-wire interface, compatible with ESP32/Arduino/STM32

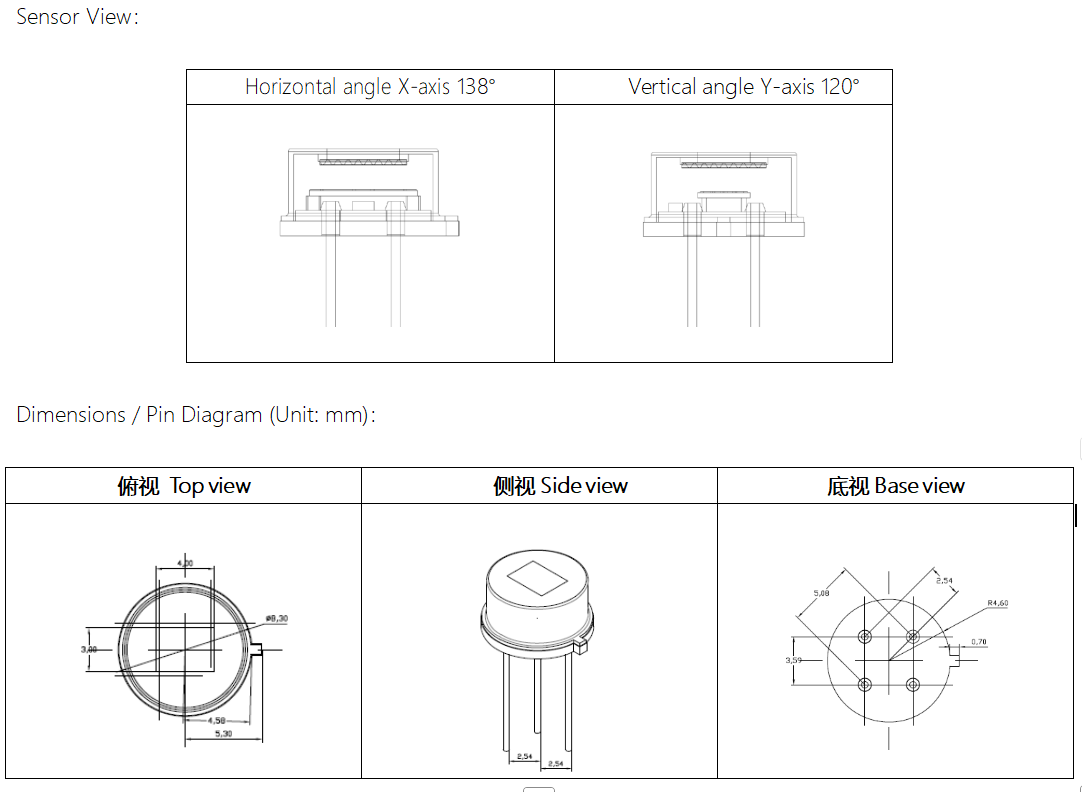

Multiple packaging options: Plastic encapsulation or TO-5 metal casing available
